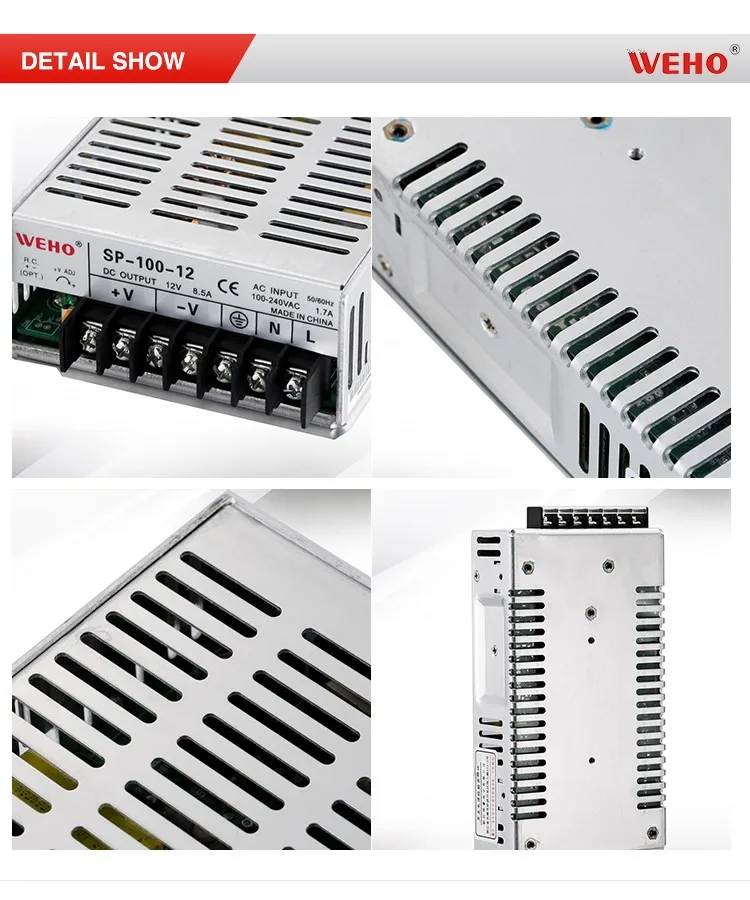

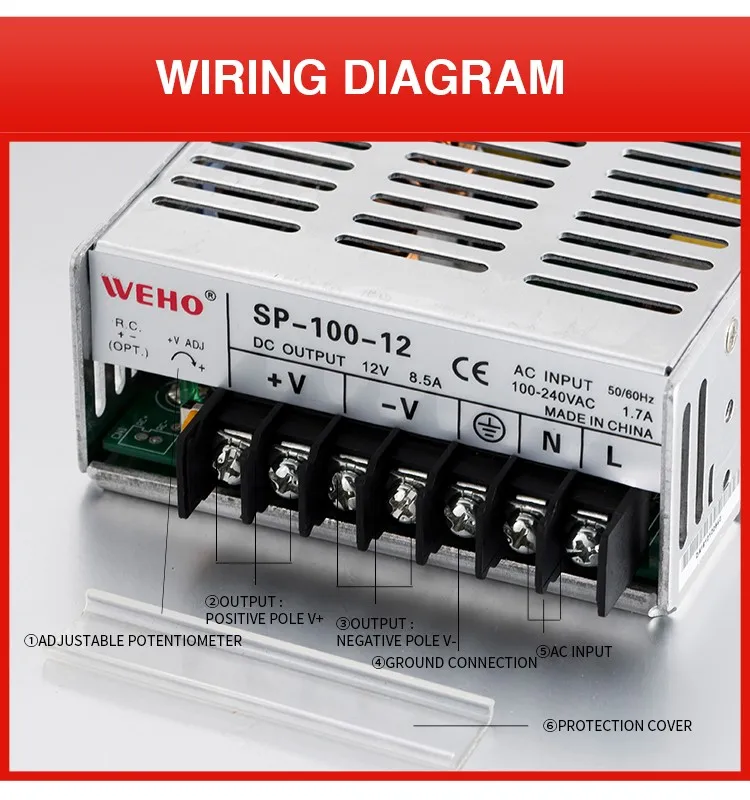

SP Series 100w single output with PFC switching power supply ac/dc 12volt smps

FOB Reference Price:Get Latest Price
US $17-20 / Piece | 1 Piece/Pieces 12volt smps (Min. Order)
Supply Ability:
80000 Piece/Pieces per Month factory direct sale
Port:
shanghai ningbo
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
WEHO
Model Number:
SP-100-12
Output Power:
100w
Output Type:
Single
Input Voltage:
110v or 220v
Output Voltage:
12v
Output Frequency:
47hz-63hz
Output Current:
8.5a
OEM:
yes
Shell material:
Aluminium
Overall dimension:
179*99*45mm
weight:
0.66kg
Start, Rise, Hold time:
600ms, 30ms,20ms
Workig temperature:
-10℃~+50℃
Label:
we can stick customer's label
Payment term:
30% deposit
Output protections:
OLP/OVP/SCP
Keyword:
12volt smps
Packaging & Delivery
Packaging Details
20pcs /carton
Delivery Time
3 days
Related Products

MODEL

SP-100-24

SP-100-5

SP-100-48

SP-100-12

  OUTPUT

DC VOLTAGE

24V

5V

48V

12V

CURRENT RANGE

0 ~ 4.2A

0 ~ 20A

0 ~ 2.1A

0 ~ 8.5A

RATED CURRENT

4.2A

20A

2.1A

8.5A

RATED POWER

100W

100W

100W

100W

RIPPLE & NOISE (max.)  Note.2

100mVp-p

100mVp-p

100mVp-p

100mVp-p

VOLTAGE ADJ. RANGE

23.75 ~ 24.25V

4.75 ~ 5.5V

47.5 ~ 48.5V

11.4 ~ 13.2V

VOLTAGE TOLERANCE NOTE.3

2.0%

2.0%

2.0%

2.0%

LINE REGULATION

0.5%

LOAD REGULATION

1.0%

1.0%

1.0%

0.5%

SETUP, RISE TIME NOTE.5

600ms, 30ms at full load

HOLD UP TIME (Typ.)

20ms at full load

 INPUT

VOLTAGE RANGE

85 ~ 264VAC 120 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR (Typ.)

PF>0.93/230VAC   0.98/115VAC at full load

EFFICIENCY (Typ.)

84%

76%

82%

80%

AC CURRENT (Typ.)

1.7A/115VAC  0.8A/230VAC

INRUSH CURRENT (Typ.)

COLD START 30A/230VAC

LEAKAGE CURRENT



PROTECTION

OVER LOAD

105 ~ 150% rated output power

Protection type : Constant current limiting, recovers automatically after fault condition is removed

OVER VOLTAGE

23.75 ~ 24.25V

5.5 ~ 6.75V

47.5 ~ 48.5V

13.2 ~ 16.2V

Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

REMOTECONTROL(OPTION)

CN3:4 ~ 10VDC POWER OFF,

  ENVIRONMENT

WORKING TEMP.

-10 ~ +60oC (Refer to output load derating curve)

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20 ~ +85oC , 10 ~ 95% RH

TEMP. COEFFICIENT

0.05%/oC (0 ~ 50oC )

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for  60min. each along X, Y, Z axes

 SAFETY &EMC

(Note 4)

SAFETY STANDARDS

UL60950-1, TUV EN60950-1 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

EMI CONDUCTION & RADIATION

Design refer to EN55022 (CISPR22) Class B

HARMONIC CURRENT

Compliance to EN61000-3-2,-3

EMS

IMMUNITY

Design refer to EN61000-4-2, 3, 4, 5, 6, 8,11, ENV50204, EN55024, light industry level, criteria A

OTHERS

MTBF

211.3K hrs min. MIL-HDBK-217F

DIMENSION

179*99*45mm (L*W*H)

PACKING

0.66Kg; 20pcs/14.3Kg/1.17CUFT
