waterproof 20a led driver 250w 24v smps switching power supply

FOB Reference Price:Get Latest Price
US $20-25 / Pieces | 1 Piece/Pieces OEM ODM (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
weho
Model Number:
LPV-250-24
Output Power:
201 - 300W
Output Type:
Single
Input Voltage:
220V
Output Voltage:
24V
Output Frequency:
47~63HZ
Output Current:
10A
IP code:
IP20
Ship Term:
By air ,By sea , Express(DHL ,fedex ,TNT, Ups EMS)
Warranty:
100% responsible for the quality
Materail:
Aluminum
Service:
Free Technology inquiry
Factory experience:
10 years
More service:
OEM ODM
Brand:
WEHO
Sample lead time:
Within 1 working days
test:
100%
SupplyAbility
SupplyAbility:
100000 Piece/Pieces per Month sample available
Packaging & Delivery
Packaging Details
9pcs/carton
Port
ningbo shanghai
Lead Time :
Shipped in 3 days after payment

waterproof 20a led driver 250w 24v smps switching power supply



Features:

1. AC input range ,constant DC output

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 24 months warranty

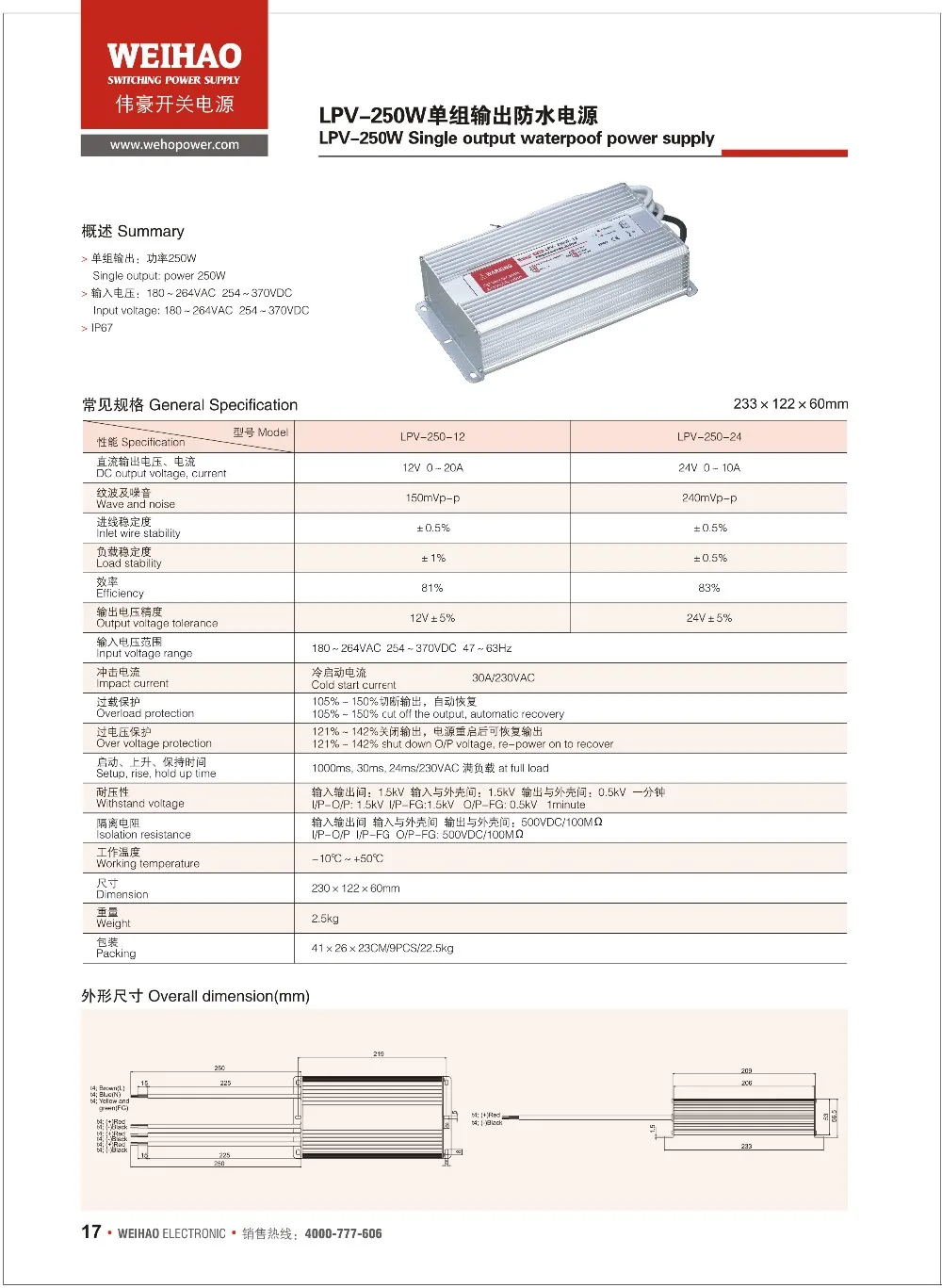

Model

LPV-250-12

LPV-250-24

DC output voltage

12V

24V

Output voltage error

±1%

±1%

Rated output current

20A

10A

Output current range

0-20A

0-10A

Wave and noise

100mVp-p

100mVp-p

Inlet stability

±0.5%

±0.5%

Load stability

±0.5%

±0.5%

DC output power

250W

250W

Efficiency

85%

85%

AC input voltage range

170 ~ 264VAC

Input current

0.5A/115V 0.25A/230V

AC impulse current

Cold-start current 13A/115V 26A/230V

Leakage current

<0.5mA/240VAC

Over load protection

105%~150% rated output power

Protection:Hiccup mode

Over voltage protection

13~16V

28~32V

Protection:Shut down output voltage

short circuit protection

Protection:Hiccup mode

Temperature coefficient

±0.03%(050)

Setup rise hold up time

200ms,100ms,30ms

Vibration

10~500Hz,2G 10min./1cycle,Period for 60min,Each axes

Withstand voltage

I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P:100M Ohms / 500VDC / 25 / 65% RH

Working temperature and humidity

-10~+60°C, 20~90%RH

Store temperature and humidity

-20~+85°C, 10~95%RH

Overall dimension

235×122×60mm

Weight

2.8Kgs

Safety standards

Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved

EMC

EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 app











With 10 years OEM experience, we can provide professional solutions for customers.
